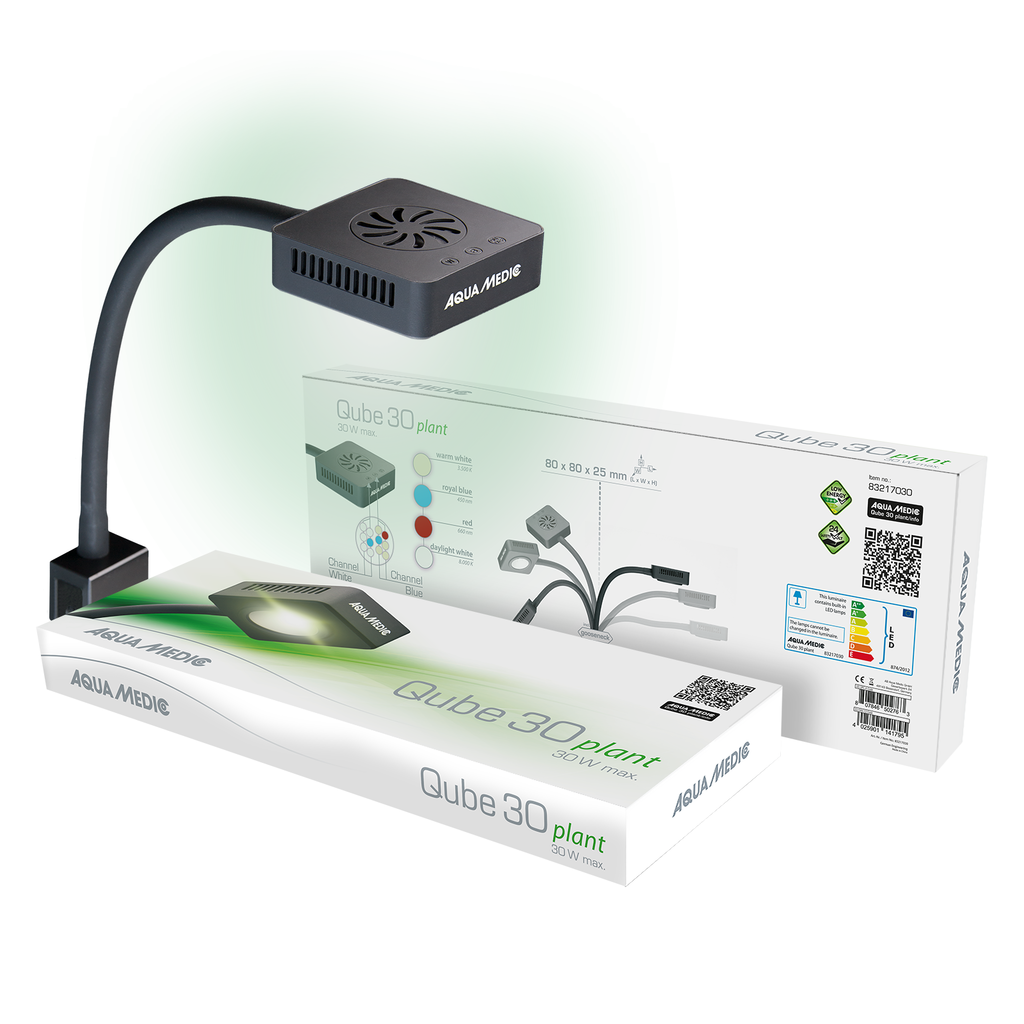

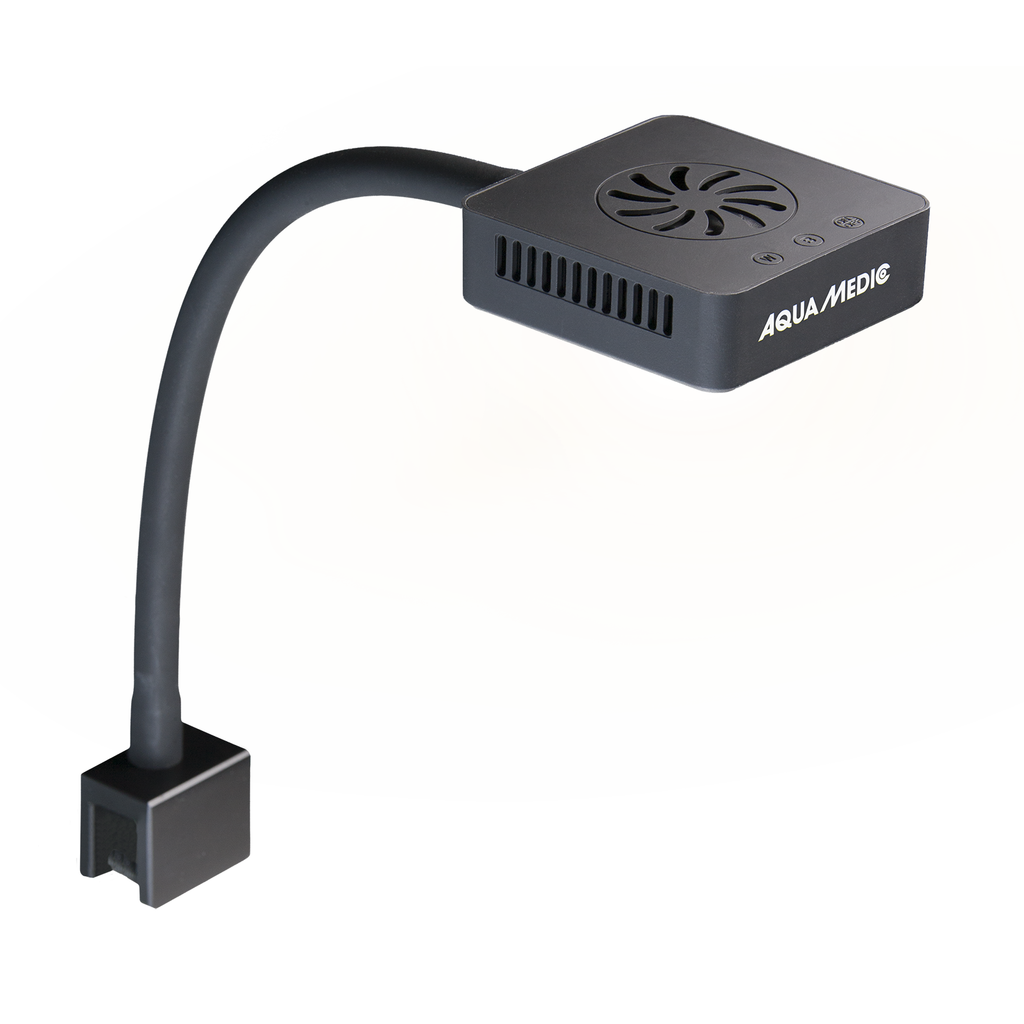

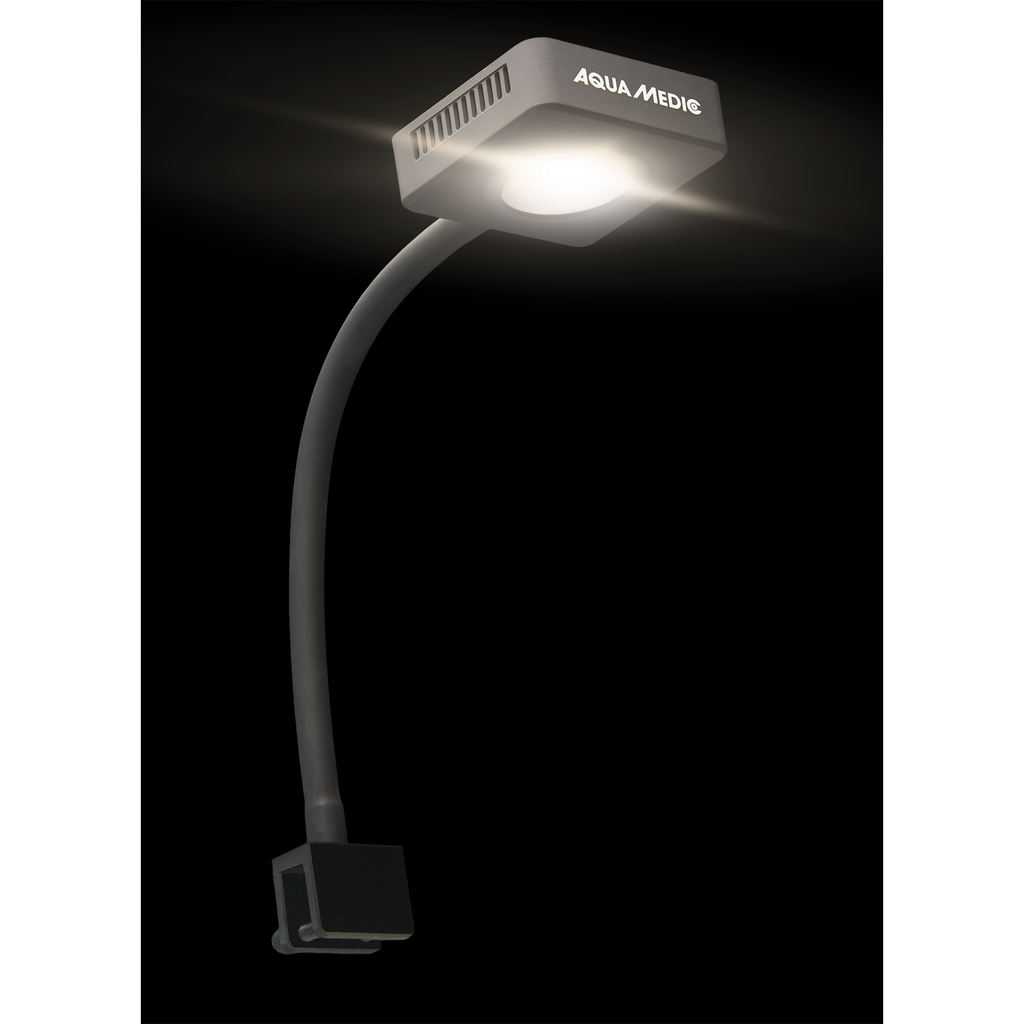

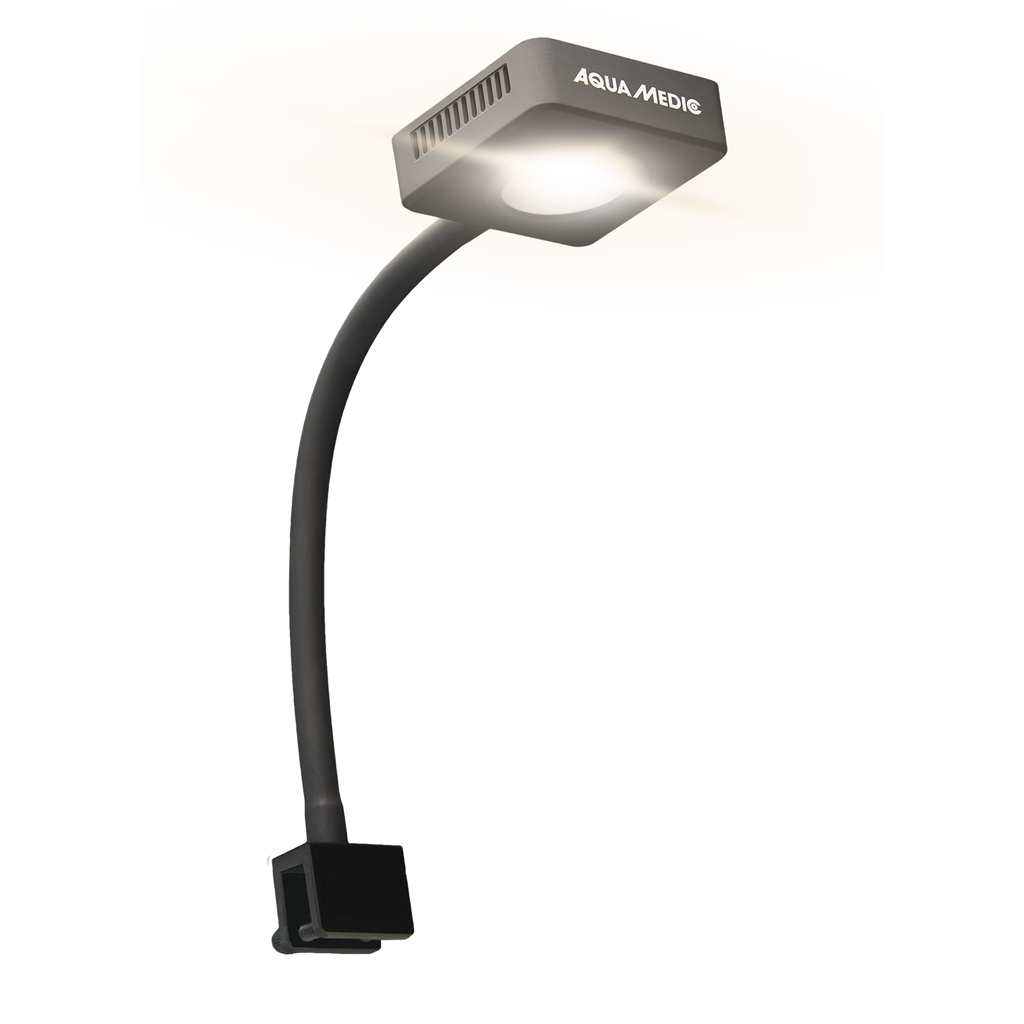

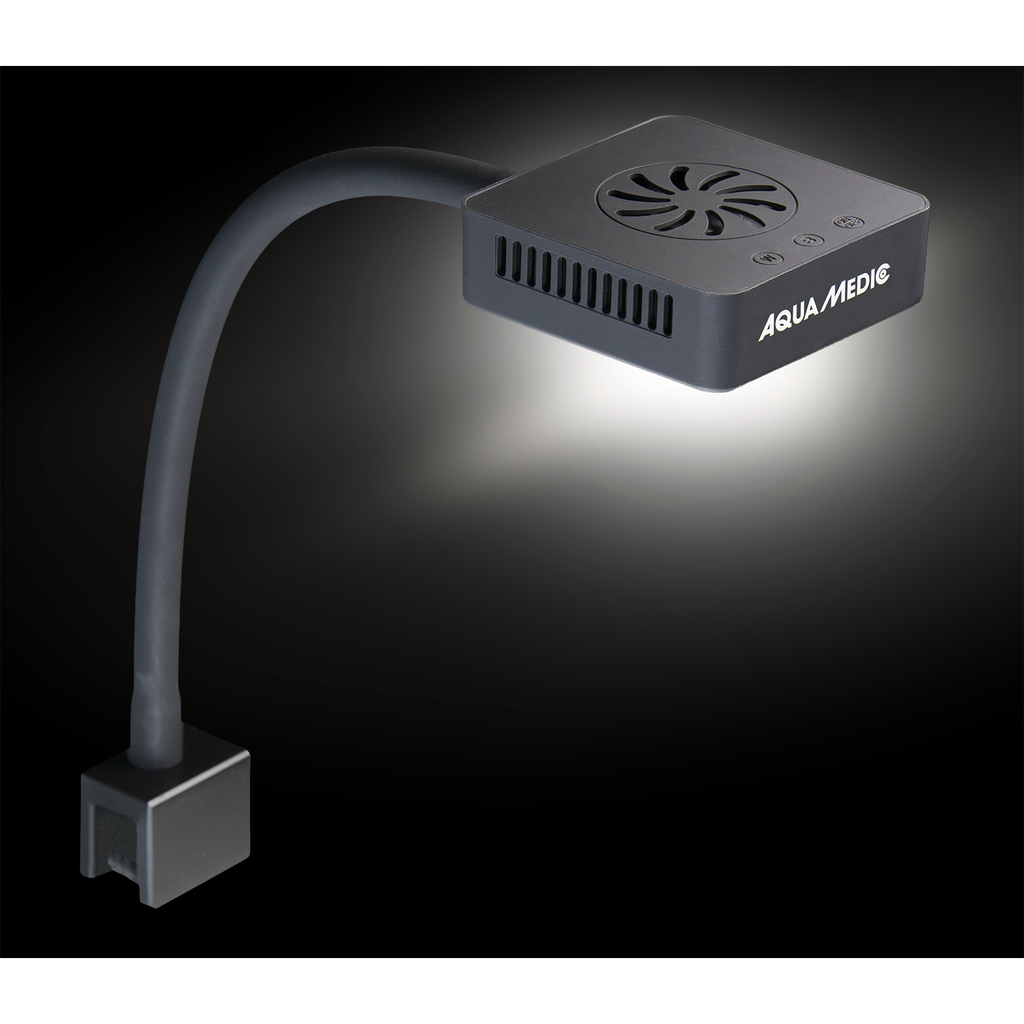

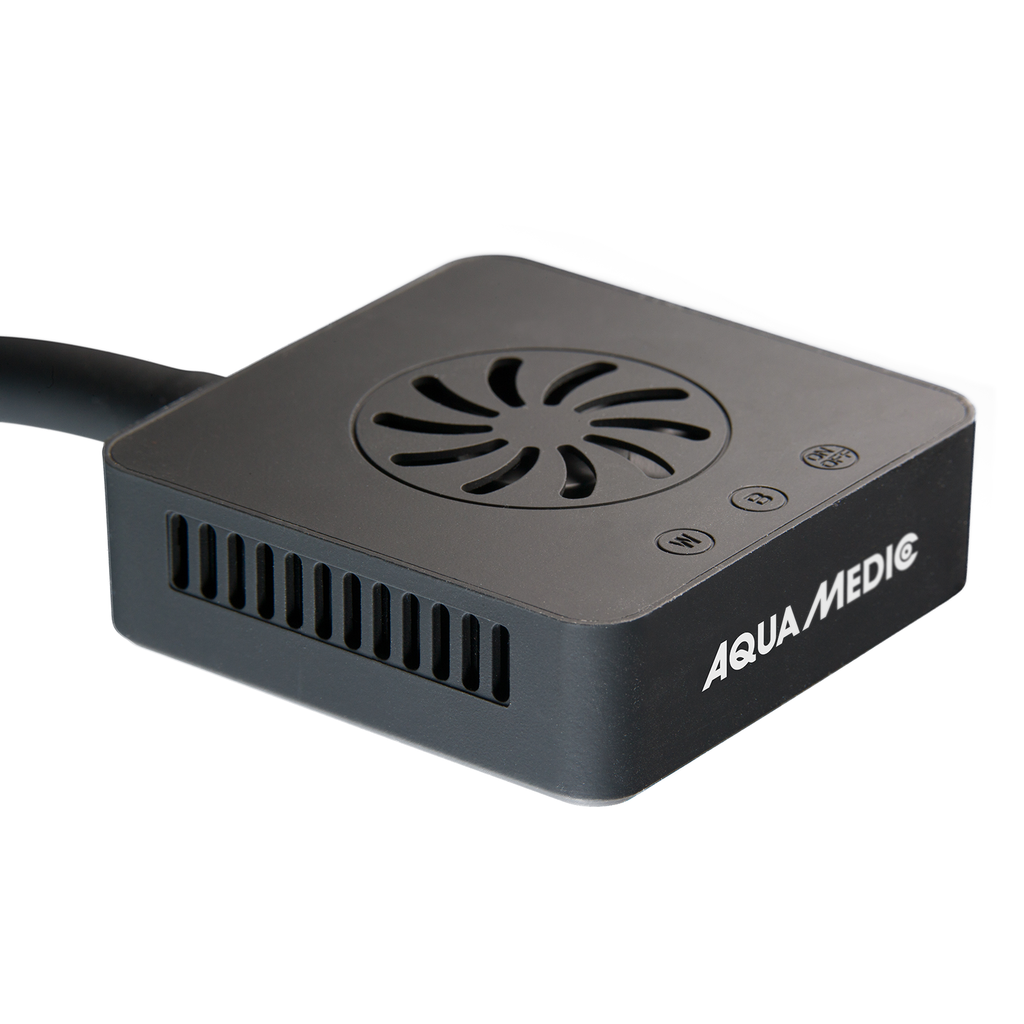

Qube 30 plant

LED-Spot light for freshwater aquaria

  • Description

    Features:

    - LED Cluster chip consisting of 12 individual LED elements with balanced light spectrum

    - High energy density specially designed for strong plant growth (PAR= 805 µmol m-2s-1)

    - Colour and light intensity are adjustable manually via 2 channels

    - The compact design allows for an ideal illumination of nano aquaria as well as dark edge areas in larger aquaria.

    - Silent-running internal fan for reliable cooling of the LED chip

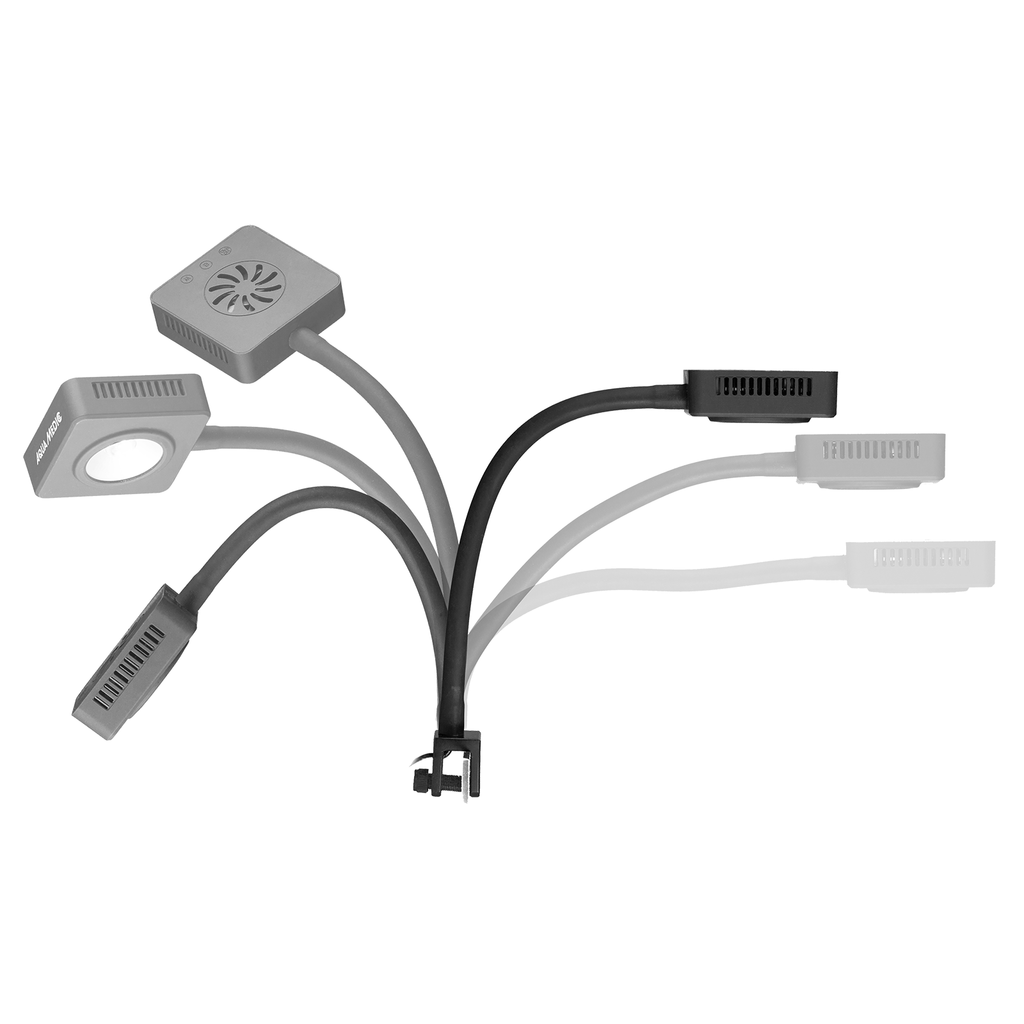

    - A flexible gooseneck ensures a firm hold and easy alignment

    - Integrated cable feedthrough for power supply in the
      gooseneck

    LED daylight white 8.000 K 5 pcs.
    warm white
    		 3.500 K
    		 4 pcs.
    royal blue 450 nm 2 pcs.
    red
    		 660 nm 1 pcs.

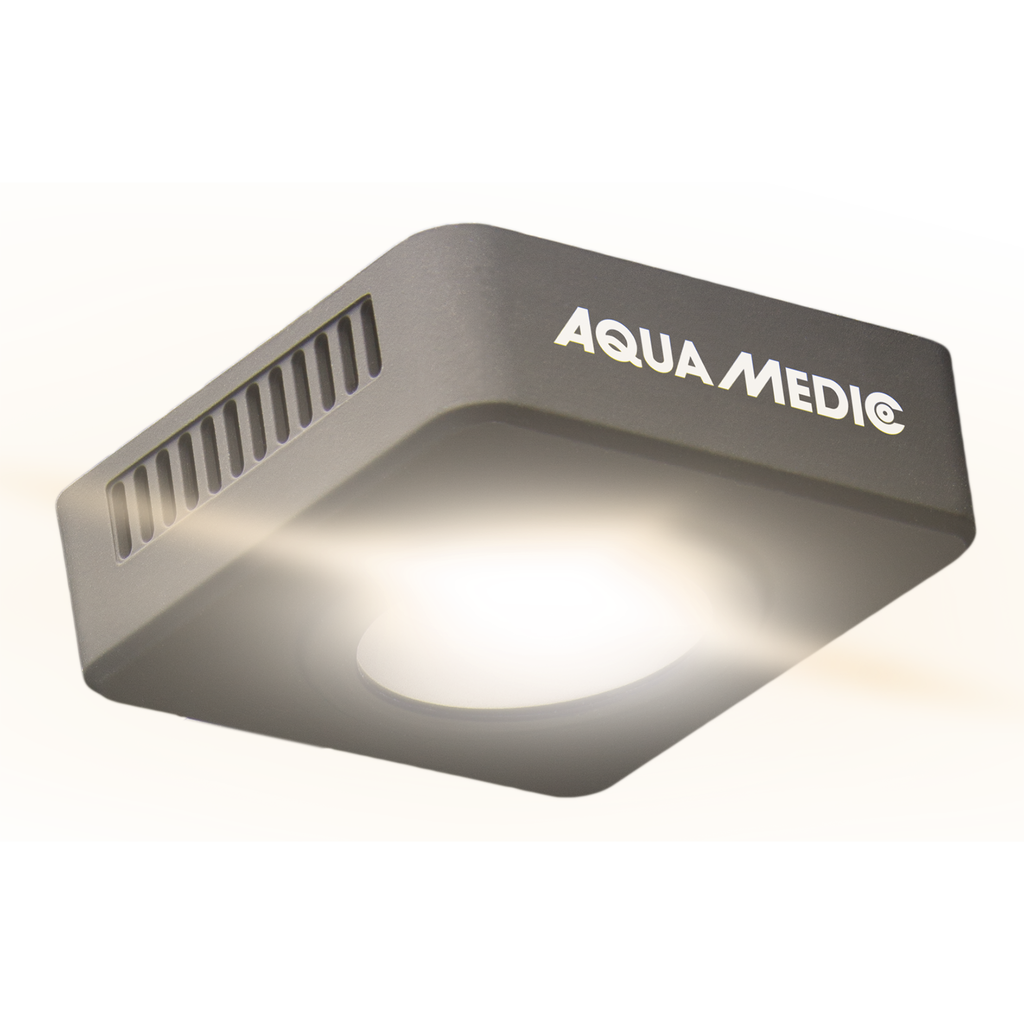

    There is a lense with 90° scattering angle installed.

    Dimensions (housing) app. 80 x 80 x 25 mm
    Weight incl. holder app. 290 g
    Number of light channels 2
    Number of light colours 4
    Illuminated area max. app. 300 x 300 mm
    PAR value 805 µmol m-2s-1
    Total consumption 30 watts max.
    Power supply transformer 100-240 V / 50-60 Hz
    Power supply light 24 V


  • Versions
    Qube 30 plant
    Item-No.: 83217030
    EAN code: 4025901141795
  • Spare parts
    Transformer universal, 24 V/1.5 A
    Item-No.: 103.508-7
    EAN code: 4025901132977
  • Downloads
    Qube 30 plant manual
    Download
