Description
- Can eliminate single cell algaes giving crystal clear water in salt and fresh water aquaria.
- Helps eradicate bacteria and other water borne parasites and decreases the risk of fish acquiring infections.

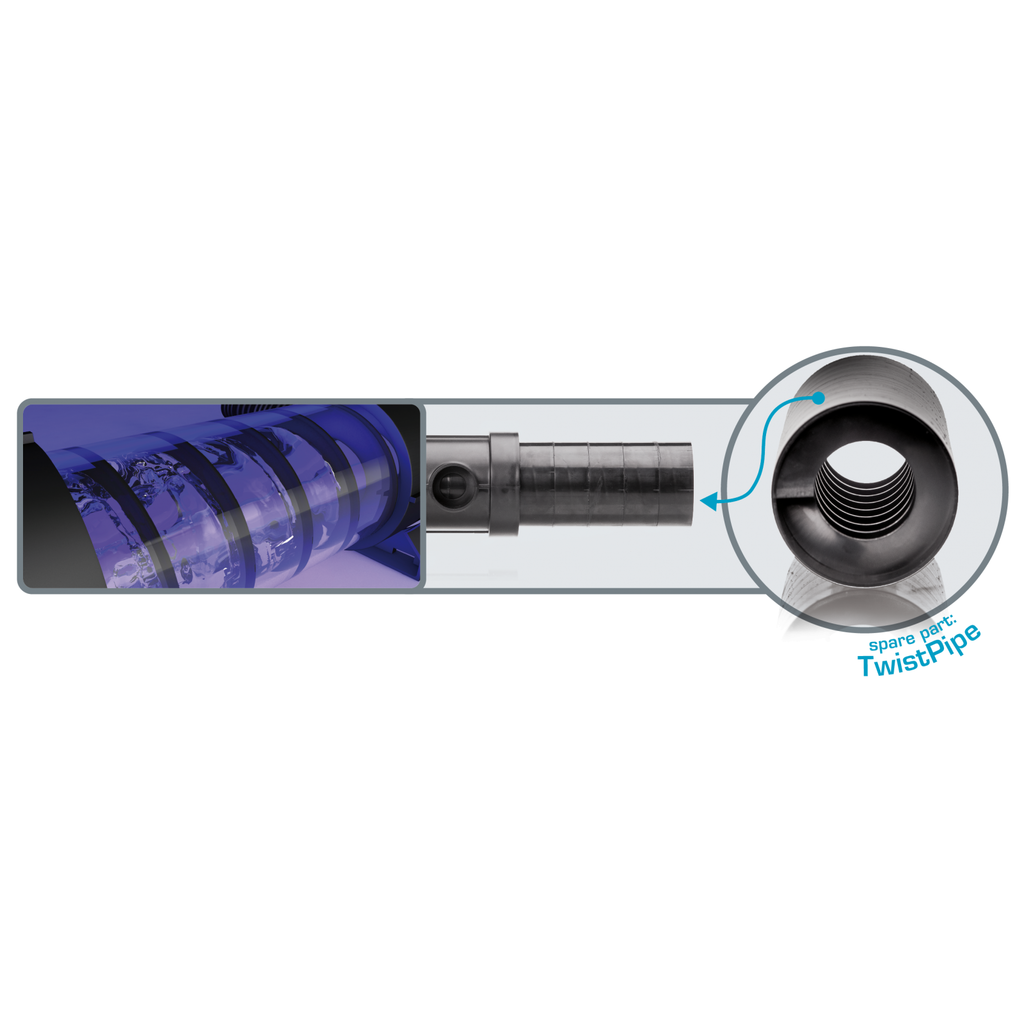

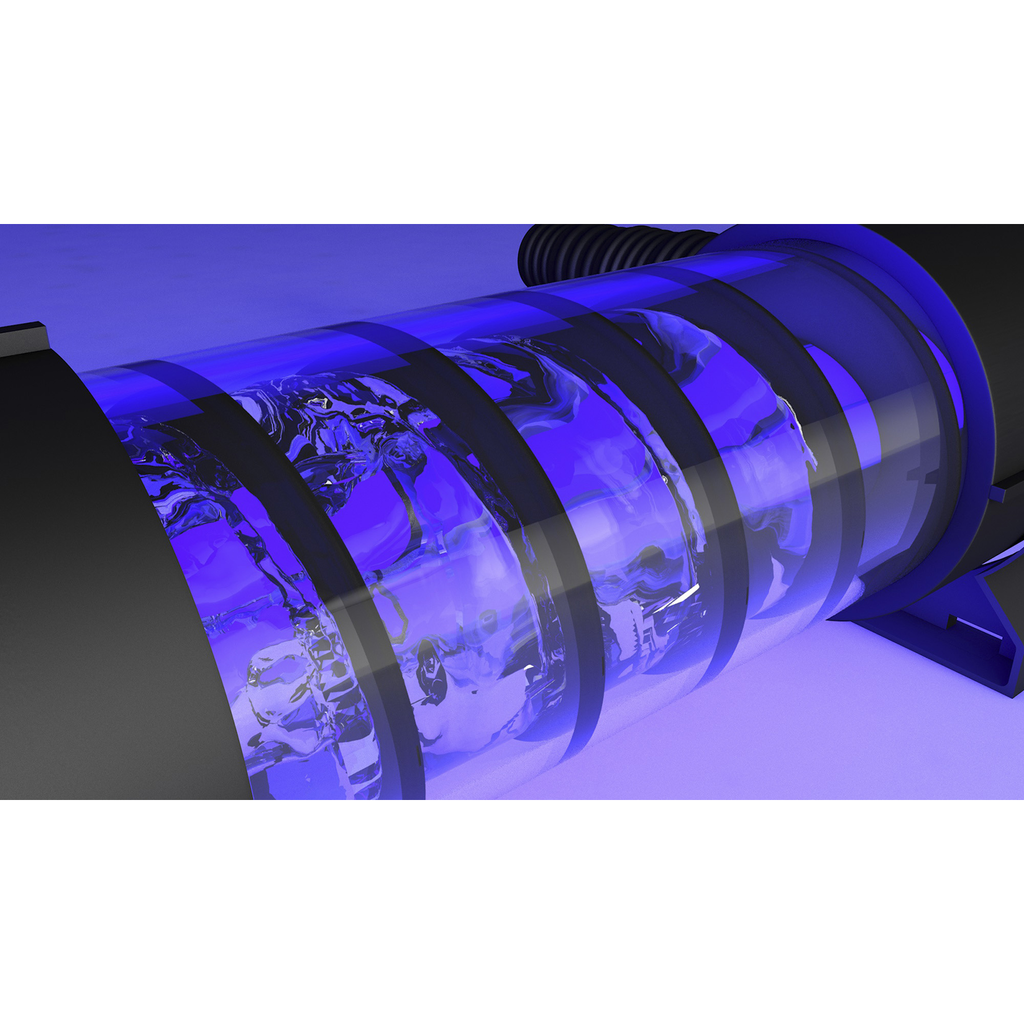

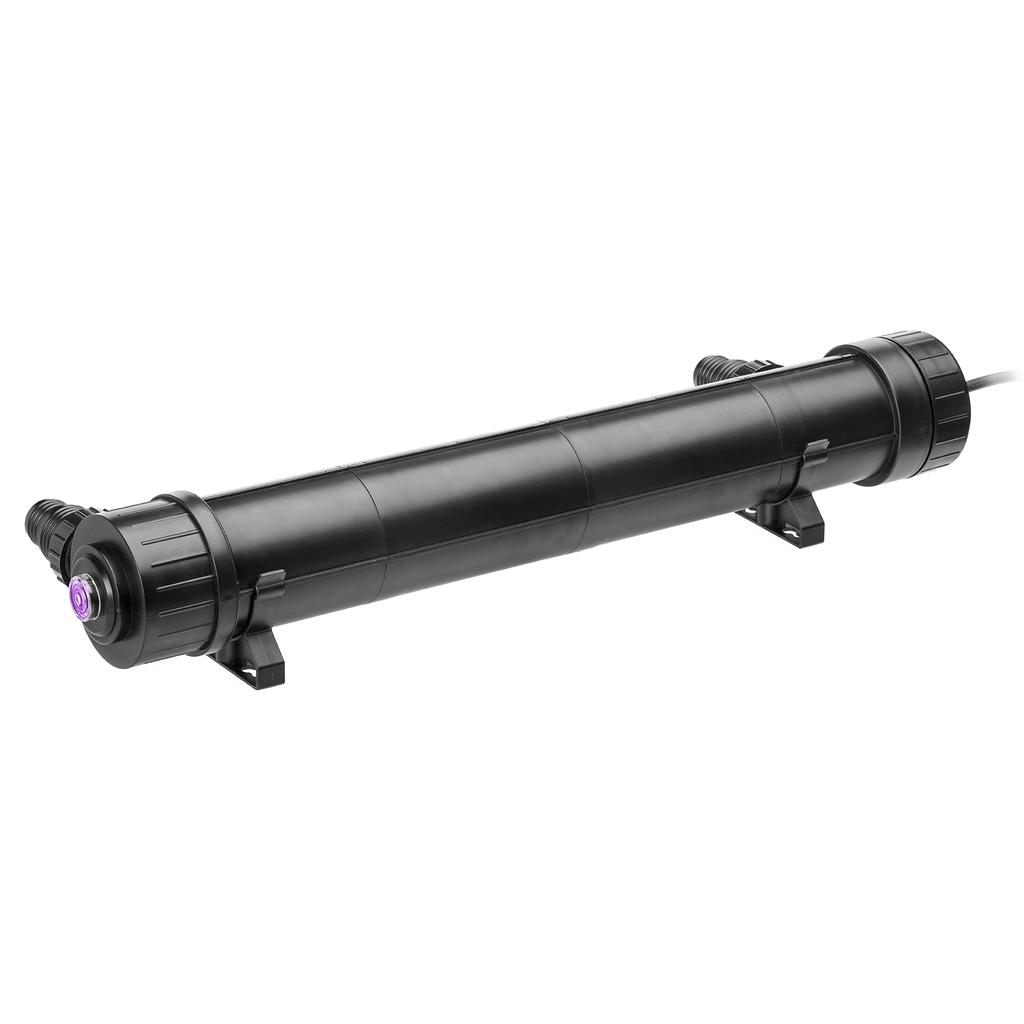

- Controlled water flow and the large volume of the Helix Max 2.0 ensure maximum efficacy. The water is directed in a spiral path around the quartz tube resulting in more efficient use of the UV radiation than in standard units.

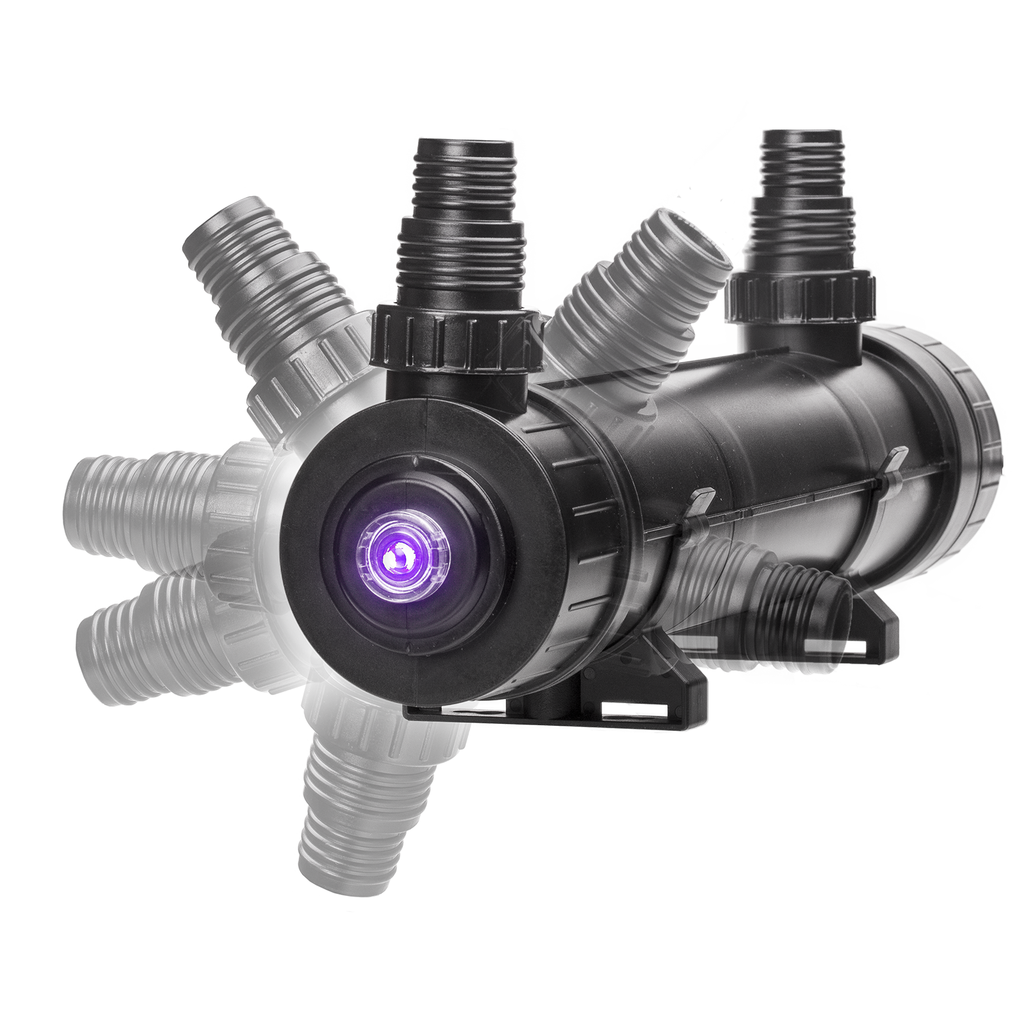

- The inlet fitting can be rotated by 360° for easy mounting at any angle. This allows a space-saving installation.

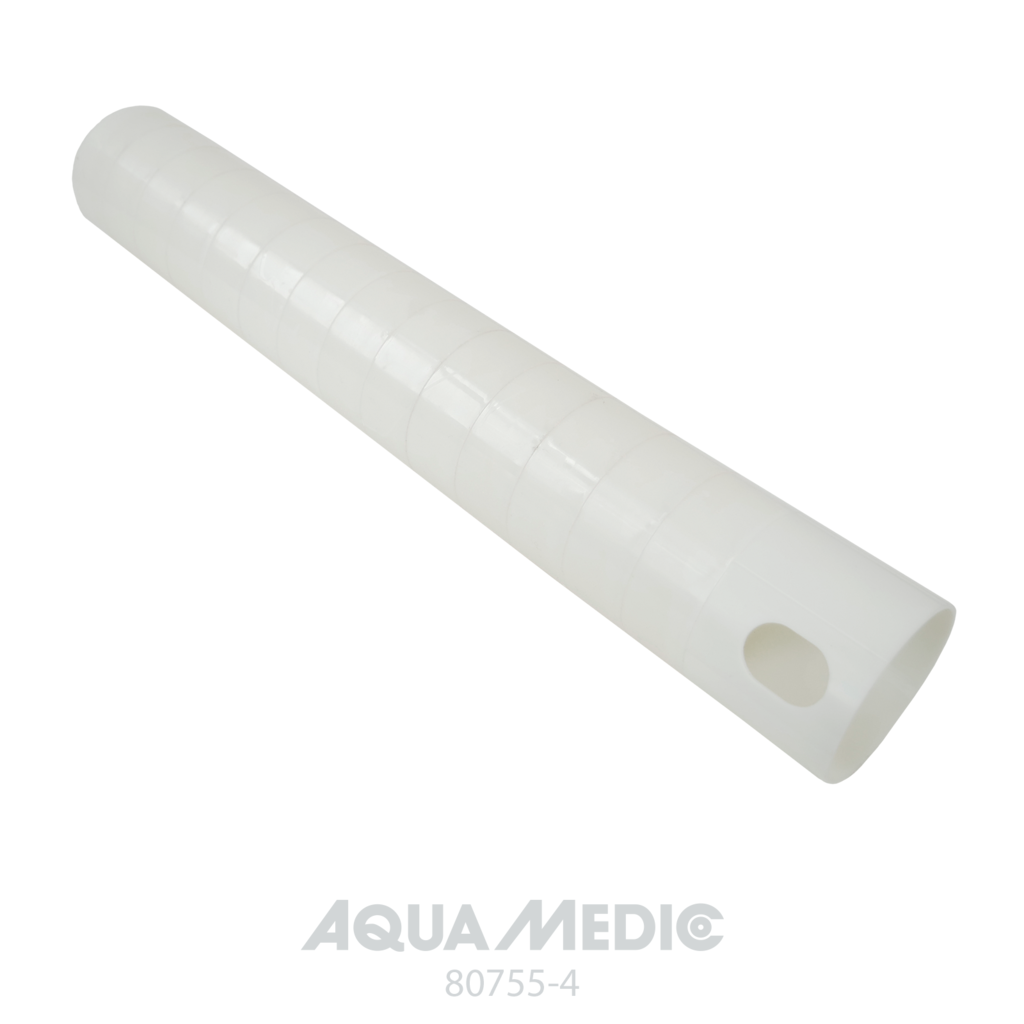

- Easy cleaning of the inner spiral by simple disassembly.
- Simple and safe function control through integrated viewing window.
- All versions of the Helix Max 2.0 are equipped with a high frequency electronic ballast for salt and fresh water aquaria. The electronic ballasts increase the lifetime and the efficacy of the UV lamps.
- Incl. hose nozzles for connecting hoses.Typ 55 watts Saltwater aquarium up to 1,500 l Recommended flow 600-1,500 l/h Freshwater aquarium up to 3,000 l Recommended flow 700-2,500 l/h Power 18 w/UVC Cable length 3,5 m Lamp type PL-L-55 W max. pressure 0,4 bar Water column max. 2 m Power connection 220-240 V / 50/60 Hz Housing dimensions
without joints
l x w in mm, app.695, Ø 110 Light source for germicidal applications with a peak radiation at 253.7 nm.
For disinfecting water, not suitable for other applications. -
Versions
-
Spare parts

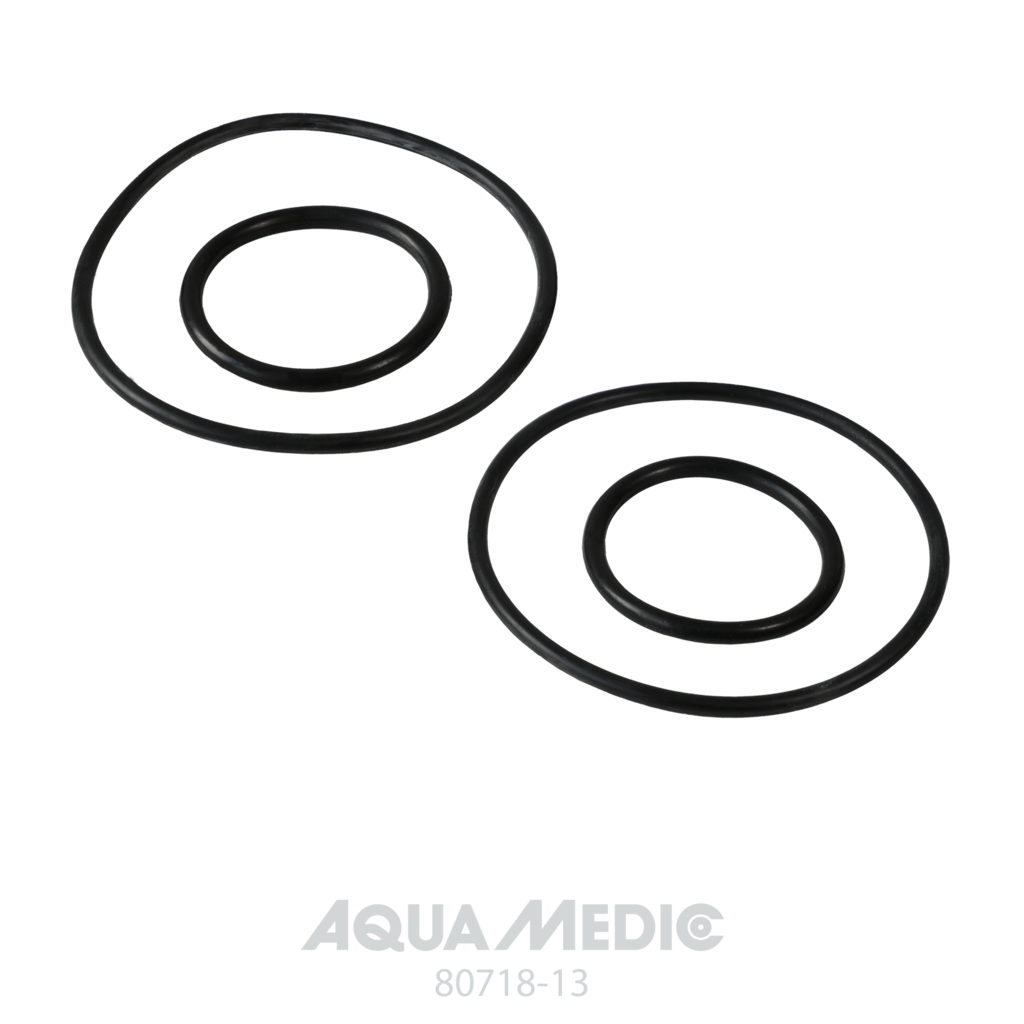

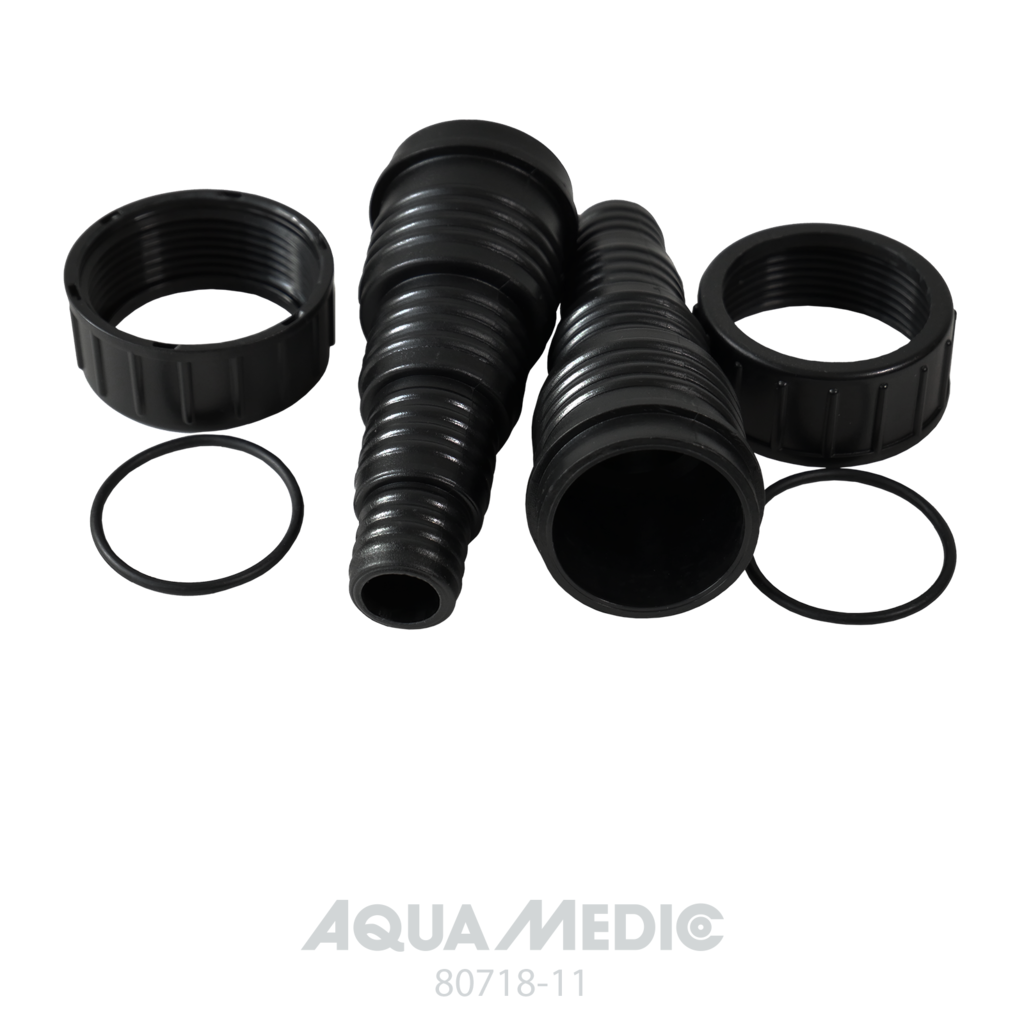

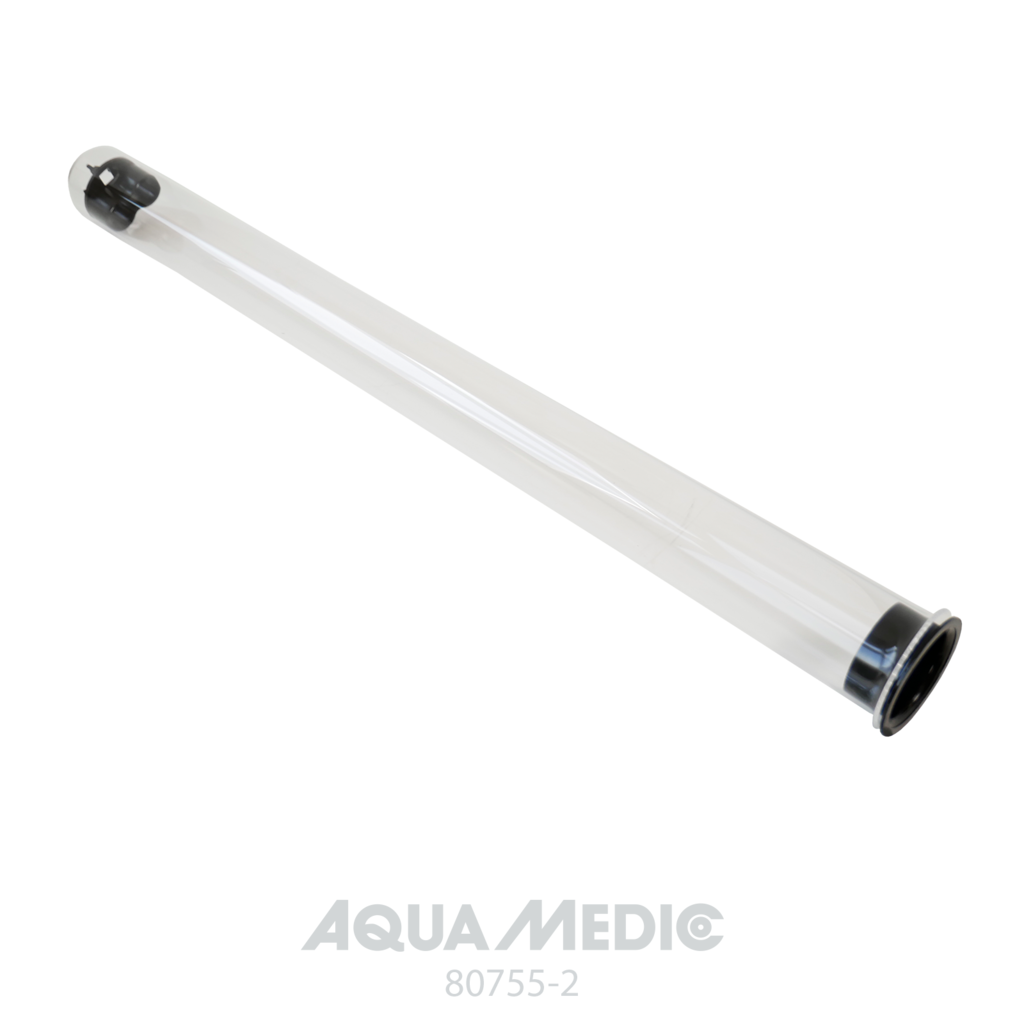

Item-No.: 80718-11EAN code: 4025901142617Item-No.: 80718-13EAN code: 4025901142624Item-No.: 80755-2EAN code: 4025901142365
-
Downloads
Helix Max 2-0 manual
- Videos
